COACH LISTING DETAIL
1990 Wide Body
reload Home page
images not displayed?
images not displayed? Reload Home page
I walked through this bus at the WOG rally last week,its a must see IMO
It was repainted a few years ago and the owner at that time did all kinds of stuff,now where did i put that list?
8V92 Detroit,turbo,450hp (newer injectors)
Powertech diesel generator
Allison Trans,with retarder,air brakes,air ride,HWH leveling system,loaded to the max!
1990 40 ft. Wide Body Blue Bird Wanderlodge
1990 Wide Body 40 ft. Wanderlodge
Coach repainted 10/2017
All documentation and receipts since ownership.
All original building documentation, drawings, electrical prints, wire run drawings, micro phish, etc.
Very detailed Excel spreadsheet compiled for parts, hints, repair info, dealers, engine data and cross references, etc.
Silverleaf Engine Monitoring System and the DELL LAPTOP which runs it. Lap Top has new battery 10-2021
475HP 8V92TA Detroit Diesel turbo engine, 3886 hours
NEW injectors 03/2019 Installed 8 (#523-4775), reset ALL exhaust valves to .016” and timed NEW injectors to 1.520”. These are NEW injectors and NOT Reliabuilt units.
New cap and seal for the manual tachometer output shaft at rear of blower 3/2019
Allison 5 speed HT 755CR transmission with retarder
Transmission filter changed 2021 with Transynd Fluid
New transmission oil filter hoses 2021
Engine oil and 2 fuel filters changed 2021
Mobil 40w ultra low ash oil
Spare Primary and Secondary fuel filters
42 gallon propane tank
300 gallon fuel tank
Safety Steer on front axle
HWH automatic hydraulic leveling system
Steer axle TOYO tires, 315R 80-22.5
Drive 4514 installed 6-23-2015 45th week of 2014 (I will double check dates on the drive, pretty sure they are also 2019 date codes)
Tag 2019 installed 8-14-2019 20th week of 2019
Steer 2019 installed 8-14-2019 20th week of 2019
Engine air compressor hoses replaced 2011
4 NEW commercial maintenance free batteries, 01/2021
All NEW 2/0 battery cables.
2 - DC Battery disconnect switches
Aluminum Alloy wheels
Full set of 6 Centramatic Wheel Balancers installed on all wheels.
Engine bay cooling fan added to remove heat when parking after traveling. Can be used as Manual or Automatic via variable temperature sensor over engine turbo. Reduces heat transfer to the bedroom area when parked.
NEW Air Dryer Filter and purge valve 2016 2022
New Compressor governor 10/2021 10/2022 and moved to Curb side engine bay.
NEW 2 - 160 amp Alternators “2” top, “1” Bottom
NEW Engine fan belts all
Air Bags ALL axles (10) installed 2015 NEW
Koni shocks steer & drive axles installed 2017 NEW
Gabriel Shocks installed on tag axle 2017 NEW
Added additional Gabriel shocks to rear of Tag axle to reduce front bounce.
Kubota diesel generator, 15 kW with NEW power head.
Added alternator to Kubota generator 45 amp
15 kW Marathon PanCake Generator alternator 2015 NEW 24 hours run time as of 12-07-2021
Generator DC Fan conversion on radiator NEW
Replaced the Engine fresh air intake scoop
Working dash HVAC system, with ALL NEW, 10 ci compressor, dual NAPA drive belts, expansion valve, dryer, all flexible hoses, and Freon R134a 11/2016
New Engine water pump 10/2014
Drive axle Cross Fires 100 lb. NEW w/individual tire schrader valve stainless steel hoses 09/2015
Engine fuel pump New 2016
Engine fuel hoses ALL NEW replaced from frame connection through to heads
Engine coolant level module NEW 01/2018
Coolant hose from expansion tank to engine NEW 12/2016
Updated DDEC II engine EEPROM to Version v154
Fabco-Air step solenoid for entrance step replaced
Entrance step pressure switch New
Sony LED salon TV
Sony LED bedroom TV
Dometic 3 way refrigerator model RM4804 rebuilt 12-15-2019 with new cooling back.
Installed cooling fans and light inside refrigerator
Installed new refrigerator door light switch.
Rescreened Window screens
Original Blue Bird Box with documentation
Cedar lined wall in bathroom closet
360 Siphon RV Waste Vent Cap on top
All clearance running lights are new 12/2017
All new taillights and front turn lights
All rear taillights are NEW Hella 12/2014
License plate LED lights NEW 12/2017
All dash gauges have new LED lights
ALL Interior DC lighting changed to LED
LED lighting under couch with dimmer under front right end of couch.
Driver side fresh air fan
Zip-Dee awning package, 6 windows plus a 23 ft. patio awning
Patio awning has a NEW main spring 10/2017
Zip-Dee patio awning NX Upgrade Kit installed NEW 2017
Zip-Dee patio awning flex key NEW 10/2017
NEW Stainless steel air horn covers
Air dump valves for waste tanks
All dump valve paddle seals NEW 2017
Aluminum plate on roof
Sewer, water, all electric adapters, and freshwater hoses included
Trailer hitch 15,000 lb. w/ability to add additional platform for golf cart or.
3 working Dometic Duo-Therm 13,500 Btu roof air conditioners w/1500watt heat strips
Dometic roof HVAC covers NEW 01/2018
2 Primus 2490 LPG boiler hydronic heaters w/under cabinet heater (next to couch).
2 –New 1500watt electric heaters. Bathroom and front console
CB radio Cobra 29LTD Classic New
CB radio speakers New
NEW Fantastic roof vent fan in Bathroom w/NEW roof vent cover to allow it to be open when raining.
KOOL-O-MATIC exhaust fan in kitchen w/ NEW motor isolators 3/2019
Fuel gauge and sender NEW
Engine temperature gauge and sender NEW
Blue Sea digital Engine DC Gauge NEW
Blue Sea digital AC Gauges (2) for generator both NEW
Blue Sea digital DC Voltage gauge w/alarm NEW
120gallon freshwater tank
Water pressure expansion tank New
Water pressure pump New
100gal black water tank w/NEW Sensors
100gal gray water tank w/NEW Sensors
2000watt Xantrex inverter/100amp charger NEW
120volt 30amp AC inverter/shore power relays replaced
SURGE GUARD 50amp transfer switch installed 2016 NEW
50amp Progressive Industries Smart Surge AC protection unit w/lock box
Rear view color camera NEW
7” Color rear view monitor in dash NEW
LPG detector under dinette table.
LED Driving lights NEW 2017
LED rear flood lights NEW 04/2019
Working Fog Lights (NEW) with NEW Clippard cylinders
Hella Jumbo 220 Landing Lights NEW
Flex Steel pilot & co-pilot seats
Sofa opens to a bed, with 2 under storage drawers and new seat belts
North/South Queen island bed with NEW custom mattress
Brazilian Cheery wood floors in bedroom and salon front area
Tile in bathroom and kitchen/dinette area with access inset for fuel tank sending unit
Custom Carpet dash pad NEW 2016
Windshield privacy screen
Kenwood Stereo amplifier system
Stereo speakers front and kitchen New
FM radio New
Wiengard Razar Deluxe digital TV antenna system, electric raise/lower New 2018
Weingard 300 WIFI External Booster Antenna System 2-15-2020
BlueRay DVD player
Musical horns with 100 tunes
Loudspeakers for musical horns NEW
Walk through bath with shower and new Sealand toilet
11 gallon electric water heater w/engine heat exchanger
Delta vanity bathroom sink faucet NEW
Gas BBQ grill with additional LP gas tap

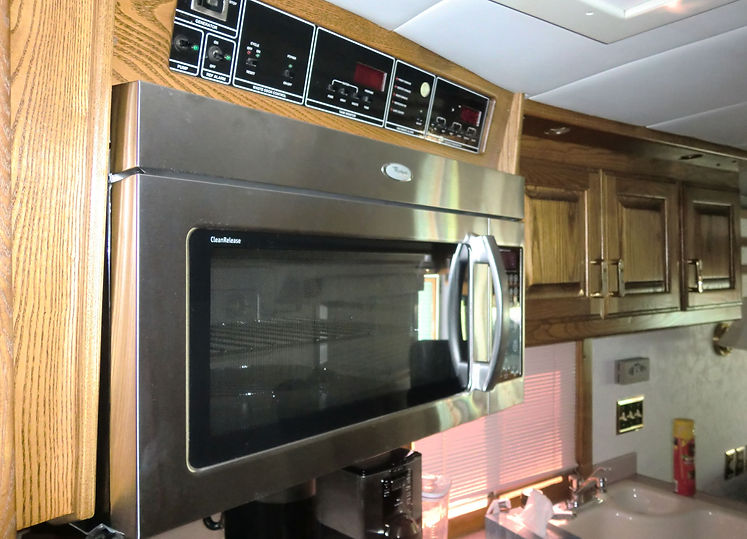

Whirlpool Convection microwave NEW
2 large pull out pantry cabinets in kitchen w/locking pins.
Corian counters and dinette table
2 burner LP gas stove
Garbage Disposal NEW
InstaHot water at the kitchen sink, cleaned and tested 2021
4 Joey Beds for included tool chest (less tools)
Drive axle seals and brakes installed NEW 2016
All flexible brake can hoses replaced
NEW Stainless Steel Mil-Spec ¼ turn fasteners installed in the front lower outside electric access panel
New Steering Drag Link Tie Rod ends installed August 2018
New Generator battery disconnect switch 9/2018
NEW Drivers side windshield replaced 04/11/2019
NEW Smoke detector installed in kitchen area w/10 YEAR Battery 04/11/2019
New Generator battery 07/19/2019 3 yr warranty
Added NEW alternator and fan belt to Kubota generator 08/02/2019
Replaced all Brake Cans and adjusted brakes to DOT specs. 2021
New exhaust resonator and chrome tail pipe 02-24-2021.
New 5” Stainless Steel Flex Exhaust pipe at top of engine transition 02-04-2021
New Entrance door rubber weather seal 12-19-2020
New windshield wiper blades 10-2020
No Fungus in the fuel tank
New tag axle brake drums 02-02-2020
New front HWH hydraulic leveling jacks 01-12-2020
call Randy 352 538 3435
Located in SC
